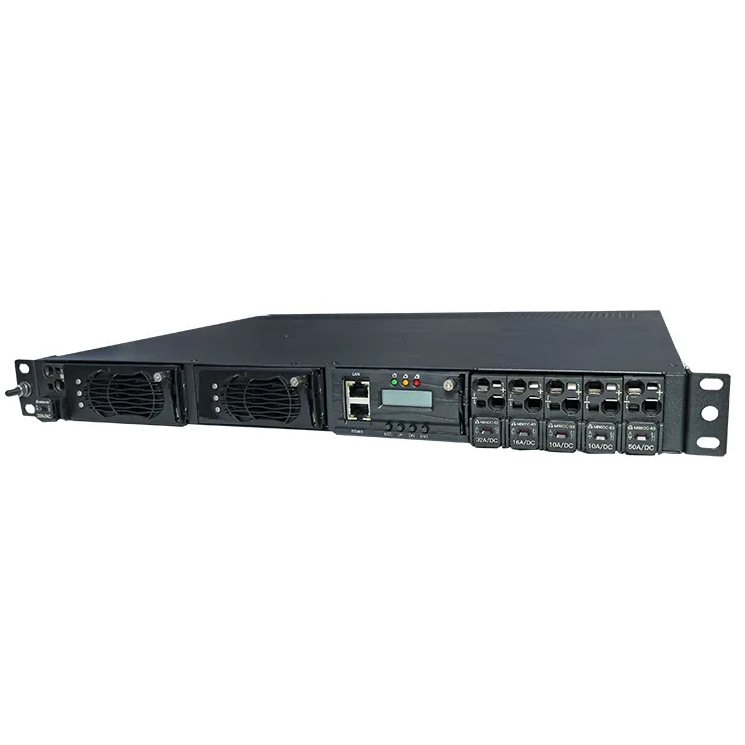

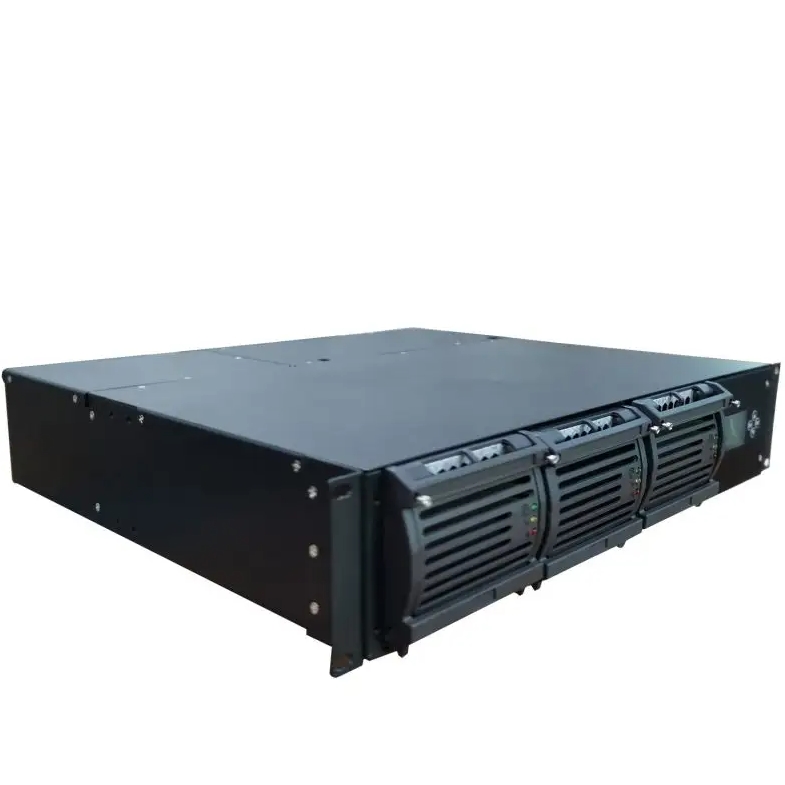

24Vdc 20-600 Amperes Rectifier system
AC input voltage range: 90~290Vac
Efficiency>93%
Perfect battery management, battery temperature
Multiple communication ports, easy for networking and remote management，ModbusRS485，TCP/IP， YDN23 (YD/T 1363) protocol
Temperature compensation, LVLD and LVBD protection
Automatic battery test function, cycle test, quick test
Efficiency>93%
Perfect battery management, battery temperature
Multiple communication ports, easy for networking and remote management，ModbusRS485，TCP/IP， YDN23 (YD/T 1363) protocol
Temperature compensation, LVLD and LVBD protection
Automatic battery test function, cycle test, quick test
Monitor Controller of Rectifier System
DC Input Voltage: 40~60Vdc
Input Current: ≤0.5A
Power: Less than 20W
Communication: RS485/TCP/IP/SNMP
Baud Rate: 9600 Bit/s
Input Current: ≤0.5A
Power: Less than 20W
Communication: RS485/TCP/IP/SNMP
Baud Rate: 9600 Bit/s
110Vdc/220Vdc Rectifier Module
Single Input
Input Voltage Range: 90Vac to 265Vac
Rate Input Range: 110Vac/220Vac
Efficiency: ≥93%@220Vac 100% Load
Rated Capcity:
2500W(176Vac～265Vac)
1200W(90Vac～175Vac)
Input Voltage Range: 90Vac to 265Vac
Rate Input Range: 110Vac/220Vac
Efficiency: ≥93%@220Vac 100% Load
Rated Capcity:
2500W(176Vac～265Vac)
1200W(90Vac～175Vac)
24Vdc/48Vdc Rectifier Module
Single Input
Input Voltage Range: 90Vac to 290Vac/ 90Vdc to 400Vdc
Rate Input Range: 110Vac/220Vac
Efficiency: ≥93%@220Vac 100% Load
Input Voltage Range: 90Vac to 290Vac/ 90Vdc to 400Vdc
Rate Input Range: 110Vac/220Vac
Efficiency: ≥93%@220Vac 100% Load
